MgO & Epoxy Wheel / Discs

	Dong-IL provides Magnesia (MgO) & Epoxy(E) Bonded grinding wheels in various sizes, shapes, and specifications for cool, fast, finish grinding application at the factory for producing hand tools, scissors, knives, springs, automobile parts, and surface finishing of stainless steel.

Application
Hand Tools, Scissors, Knives, Springs, Stainless steel finishing. Stones

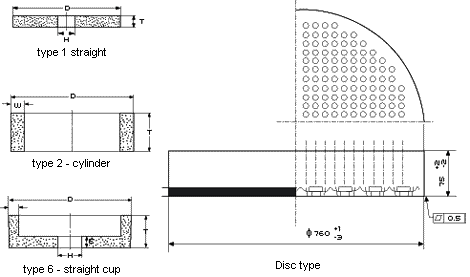

Wheel shape

MGO WHEEL / DISCS

MgO grinding wheels are produced using magnesia as binder. As having specific character of low heat generation and superior efficiency of heat dispersion, they are not only widely used at grinding cutlery, knives, scissors, shanks under wet condition but also various kind of industrial springs under dry condition.

Available specification & wheel size

	Material to be ground	shape	wheel selection
	Material to be ground	shape	specification	size(DxTxH)
WET	house hold knives, scissors industrial knives, scissors farming knives	Flat	WA150H/J	255X25X25.4 305X25X25.4 355X25~40X25.4
		Cylindrical	19A100~320H/M	255X120X155 255X120X185 255X128X197 255X127X215 355X125X276 355X125X290
	steel shanks	Flat	WA150H	610X130X150.2
DRY	heat teated springs automobile spring vessel spring sheet spring electronic spring toy & bed spring	Nut inserted Disc	WA90H	1065X132X552
			19A46N	330X60X0
			19A46N	355X60X0
			WA46M	455X70X0
			WA24N~P	610X75X0
			19A30/36M	660X75X0
			19A24M	660X75X280
			19A30/36M	760X80X0
			19A20/24M	915X80X0

* Please provide us a detailed drawings when inquire nut inserted Discs.

Epoxy Discs

Epoxy discs are newly developed grinding discs made with epoxy resin as binder. This is widely used at the manufacturing plants where requires mass production and productivity because of its possibility of reducing heat generation.

Application
Machine parts, Scissors, Knives, Springs, Stainless steel finishing.

Specification Guide

MATERIAL	ROUGHNESS	CHARACTER	SPECIFICATION	WHEEL DIA.
con-rod	rough grinding	cast iron	88A46JE	Ø760
con-rod	finishing	cast iron	88A120JE	Ø760
bearing housing	rough grinding	melliable cast iron	WA46ME	Ø585
bearing housing	rough grinding	melliable cast iron	WA46ME	Ø760
valve plate	rough grinding	cold rolled iron plate hot rolled iron plate	19A46KE	Ø585
	rough grinding	cold rolled iron plate hot rolled iron plate	19A46KE	Ø760
	finishing	cold rolled iron plate	19A120KE	Ø585
	finishing	hot rolled iron plate		Ø760
piston ring	rough grinding		WA60ME	Ø585
piston ring	finishing		WA100ME	Ø585
