Abrasive Wheel
 Resin Bonded Abrasive wheel
 |
| Resin Bonded Snagging Wheels |
|
|

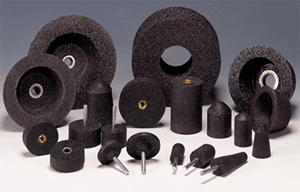

Dong-IL snagging wheels are anufactured
for a wide use of heavy stock removal in foundries, welding shops, metal fabricators,
steel mills, shipyards, etc., and offers a
complete line of engineered snagging
wheels of high performance and many
types such as straight wheels, flaring cups, cones & plugs and mounted points.
|
|
| PORTABLE SNAGGING WHEEL |
 Straight type Snagging Wheel is for used on straight grinders.
Cup Type Snagging Wheel is for used on angle grinders.
Cone & Plug Wheels are for used on straight grinders
Mounted Point Wheels are for used on straight grinders or pointer grinders. |
| |
| Specification guide. |
Metal/Steel : A16P,A16Q,A16R,A24P,A24Q,A24R
Cast Iron : AC16, AC20, AC24
Concrete/Masonry : C16R,C20R,C24R |
| |
Wheel size (DxTxH) |
Max.
RPM
|
Inch |
mm |
2 X 1/2 X H |
50 X 13 X H |
18,300 |
2 X 3/4 X H |
50 X 20 X H |
18,300 |
21/2X1/2 X H |
65 X 13 X H |
14,500 |
21/2X3/4 X H |
65 X 20 X H |
14,500 |
3 X 1/2 X H |
80 X 13 X H |
11,500 |
3 X 3/4 X H |
80 X 20 X H |
11,500 |
4 X 1/2 X H |
100 X 13 X H |
9,100 |
4 X 3/4 X H |
100 X 20 X H |
9,100 |
4 X 1 X H |
100 X 25 X H |
9,100 |
5 X 3/4 X H |
125 X 20 X H |
7,300 |
5 X 1 X H |
125 X 25 X H |
7,300 |
6 X 1 X H |
150 X 25 X H |
6,050 |
8 X 1 X H |
205 X 25 X H |
4,530 |
10 X 1 X H |
255 X 25 X H |
3,740 |
10 X11/4X H |
255 X 32 X H |
3,740 |
10 X11/2X H |
255 X 40 X H |
3,740 |
12 X11/4X H |
305 X 32 X H |
3,130 |
12 X11/2X H |
305 X 40 X H |
3,130 |
12 X 2 X H |
305 X 50 X H |
3,130 |
14 X11/2X H |
355 X 40 X H |
2,690 |
14 X 2 X H |
355 X 50 X H |
2,690 |
16 X11/2X H |
405 X 40 X H |
2,350 |
16 X 2 X H |
405 X 50 X H |
2,350 |
|
* Please specify arbor hole (H) size when order. |
| |
Wheel shape |
|
|
 |
|
| |
| CUP WHEELS |
|
|
Wheel size (DxTxH) |
Max.
RPM
|
Inch |
mm |
4 x 2 x H
rim: 3/4, back: 3/4 |
100/75 X 50 X H
rim: 20, back : 20 |
9,070 |
4.1/2 x 2 x H
rim: 3/4, back: 3/4 |
115/95 X 50 X H
rim: 20, back : 20 |
8,060 |
5 x 2 x H
rim: 1", back: 3/4 |
125/108 X 50 X H
rim: 25, back : 20 |
7,250 |
6 x 2 x H
rim: 1.1/2, back: 3/4 |
150/113 X 50 X H
rim: 40, back : 20 |
6,040 |
|
| |
* Please specify arbor hole (H) size when order. Arbor hole (H) 7/8" (22.23mm) 5/8-11, m14 available upon request. |
|
| Wheel Shapes |
 |
| |

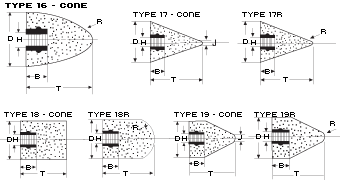

| CONE & PLUGS |
|
|
 |
| Wheel Shapes |
 |
| |
| Available wheel size |
Wheel
Type |
WHEEL SIZE(DxTxH) |
Max.
RPM
|
Inch |
mm |
Type
16 |
1.1/4 x 3 x H |
32 x 75 x H |
27500 |
1.1/2 x 1.1/2 x H |
38 X 40 X H |
24000 |
1.1/2 x 2 x H |
38 X 50 X H |
24000 |
1.1/2 x 2 x H |
38 X 50 X H |
24000 |
1.1/2 x 2.1/2 x H |
38 X 63 X H |
24000 |
2 x 3 x H |
50 X 75 X H |
18000 |
Type
17 |
1 x 1.3/8 x H |
25 X 35 X H |
35000 |
1 x 2 x H |
25 X 50 X H |
35000 |
1.1/2 x 1.1/2 x H |
38 X 40 X H |
24000 |
1.1/2 x 2 x H |
38 X 50 X H |
24000 |
Type
18
&Type
18R |
1.1/2 x 2.1/2 x H |
38 X 63 X H |
24000 |
1 x 1.1/2 x H |
25 X 40 X H |
35000 |
1 x 2 x H |
25 X 50 X H |
35000 |
1 x 3 x H |
25 X 75 X H |
35000 |
1.1/2 x 1.1/2 x H |
38 X 38 X H |
24000 |
1.1/2 x 2 x H |
38 X 50 X H |
24000 |
1.1/2 x 2.1/2 x H |
38 X 63 X H |
24000 |
1.1/2 x 3 x H |
38 X 75 X H |
24000 |
1.3/4 x 3 x H |
44 X 75 X H |
20000 |
2 x 2 x H |
50 X 50 X H |
18000 |
2 x 2.1/2 x H |
50 X 63 X H |
18000 |
2 x 3 x H |
50 X 75 X H |
18000 |
2 x 4 x H |
50 X 100 X H |
18000 |
3 x 3 x H |
75 X 75 X H ** |
11800 |
3 x 4 x H |
75 X 100 X H** |
|
|
** Available only with Type 18R |
|
|
| * Please specify arbor hole (H) 3/8"-16, 3/8"-24, 5/8"-11 when order. Other shapes and sizes are available upon request. |
| |
| RESIN BONDED MOUNTED POINT WHEELS |
| |
|
Available wheel size |
Wheel
Type |
Size(DxTxd) |
Max.
RPM
|
CS |
13 X 32 X 6 |
30,370 |
19 X 38 X 6 |
24,000 |
25 X 25 X 6 |
25,500 |
38 X 25 X 6 |
22,500 |
45 X 22 X 6 |
23,520 |
38 X 13 X 6 |
25,470 |
50 X 13 X 6 |
19,100 |
CK |
19X38X6 |
45,000 |
25X38X6 |
34,500 |
CSU |
19X38X6 |
45,000 |
25X35X6 |
34,500 |
25X50X6 |
34,500 |
CT |
38X6X6 |
25,470 |
50X6X6 |
19,100 |
|
|
| |
CS TYPE |
CK TYPE |
CJ TYPE |
CSU TYPE |
CT TYPE |
|
|
|
|
|
|
|
|
