Cylindrical Grinding Wheels

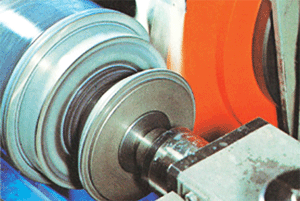

In this type of grinding the work is revolved of its axis between centers. Dong-IL cylindrical grinding wheels work to a very high degree of accuracy and finish. Dong-IL cylindrical grinding wheels are used extensively throughout the automotive engine, turbine, bearing, shipbuilding, aircraft and metal working industries as well as production shops and tool rooms.

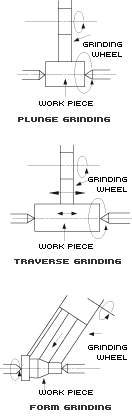

Type of grinding
Specification Guide
Material to be ground
Specification
D<18"(455mm) D 18"(455mm)
Steel
-unhardened (soft)
-castings
-hardened,
-high speed
-molybden
-nitrided

19A46M
A36L
WA60K
WA60I
SA46K
GC80I

19A46L
A36K
WA54I
WA60H
SA46J
GC60H
Stainless steel
-heat treated
GC60K
57K60K
GC54J
57A54K
Iron
-cast
-chilled

C60K
C60J

C54J
C54I
Stellite 23A46M 23A46L
Chrome plating SA60K SA54J
Tungsten carbide
-roughing
-finishing

GC60J
GC120H

GC54I
GC120G
Aluminum,Bronze
Brass, Copper
Plastic, Rubber

C60I
C46J

C54H
C46I

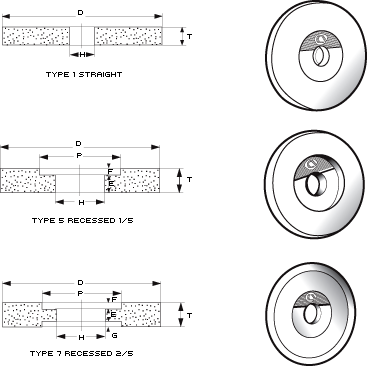

Wheel shapes

Available wheel size
Wheel sizes (DxTxH)
Inch
mm
6 x 1/2 x 1.1/4
10 x (1/2, 3/4, 1) x 3
12 x (1, 1.1/4, 1.1/2, 2) x 5
14 x (1, 1.1/4, 1.1/2, 2) x 5
16 x (1, 1.1/2, 2.1/2, 3) x 5
18 x (2, 2.1/2, 3) x 5
20 x (2, 2.1/2, 3,4) x 12
24 x (2, 3, 4) x 12
30 x (2, 3, 4) x 12
150 x 13 x 31.75
255 x (13, 19, 25) x 76.2
305 x (25, 32, 38, 50) x 127
355 x (25, 32, 38, 50) x 127
405 x (25, 38, 50, 63, 75) x 127
455 x (50, 63, 75) x 127
510 x (50, 63, 75, 100) x 304.8
610 x (50, 75, 100) x 304.8
760 x (50, 75, 100) x 304.8
* Specific hole sizes are not shown on above, please specify (H) hole size when order.
