Abrasive Wheel

Vitrified Bonded Abrasive wheel

General Purpose Wheels Tool Room wheels
Surface Grinding Wheels Centerless Grinding Wheel
Segments Crankshaft Grinding Wheel
Cylindrical Grinding Wheels Camshaft Grinding Wheel

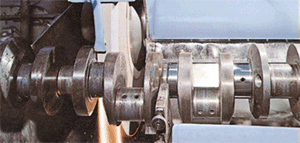

Crankshaft Grinding Wheel
Crankshaft grinding wheels are one of special class of Dong-IL production program. Dong-IL offers special thickness dimension (8500SFPM-43M/SEC) and higher speed machines to the automotive, truck, diesel, aircraft, and also to many engine rebuilding shops for dimensional accuracy, corner radii and surface finish as well as large stock removal. Most of crankshaft wheels are type 1,5,7,8,10 and 21 ranging from 18"(455mm) up to 48"(1220mm) in diameter and 1/2"(12.7mm) to 2.1/2" (63.5mm) thickness.
Specification guide
Application
Specification
Production
grinding
Automobile(passenger car) rough
FA46P
crankshaft, pin & bearing
Automobile pin

finish
forged steel
spheriodic graphite iron
23A60O
FA54N
FA80P
Truck & tractor (diesel engine)
crankshaft
before nitriding
after nitriding
FA46M
FA60L
Multi-wheels equipped
FA60M
Cast iron

rough
finish
FA46N
19A60L
Hardened steel

pin
bearing
FA54N
23A60L
Nitrided steel

pin
bearing
FA60M
FA60N
Re-grinding
Auto mobile crankshaft truck &
Tractor crankshaft
Automobile crankshaft
Truck & tractor crankshaft
19A60O
19A60N

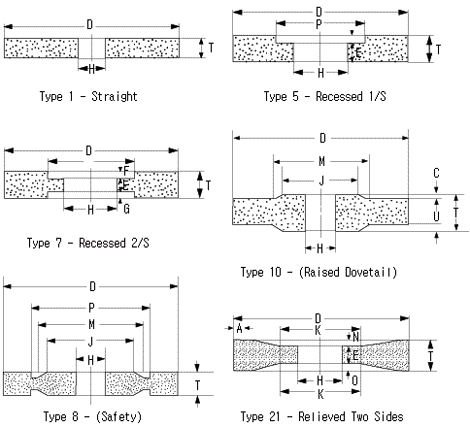

Wheel shapes
