Centerless Grinding Wheel
For mass-production of straight cylindrical and tapered shapes to precise tolerance of sizes, shapes along with finish quickly and easily, Dong-IL centerless grinding wheels and rubber regulating wheel(the drive mechanism for the workpiece) are used for Through-Feed, In-Feed, End-Feed grinding throughout the automotive, machine tool producer, bearing, accurate pin manufacturer, aircraft, steel mill, turbine blades, fastener manufacturing and even in finishing rod producer as well as general shops.

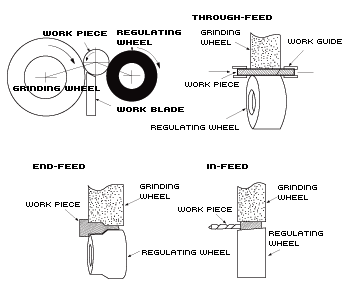

Types of grinding

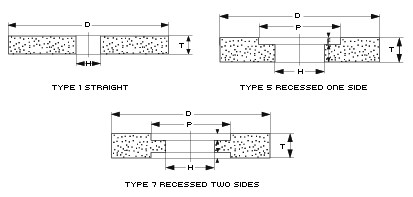

Wheel shapes

Specification Guide
Material to be ground
Starting specification
  General purpose steel   19A60L / 23A60M
  Unhardened(soft) steel   A60M
  Hardened steel   FA60K
  High speed steel     WA60L / 23A60L
  Bars   FA60M / C46Q
  Heat treated Stainless steel   GC54K / SA46L / FA60L
  Tungsten carbide   GC60J
  Cast Iron   C36L
  Aluminum, Brass, Copper,   Bronze   C46K
  Porcelain, Ceramics   GC60K

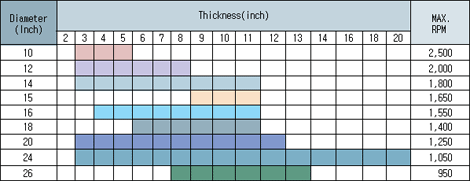

Available wheel size
