Grinding Wheel Marking Standard Wheel Shapes
Abrasive
Kinds
Character
Application
A
Regular AluminumOxide
· High hardness and toughness · Crystal Form : a-Al2O3
· True density : 3.96g/cm3 · Melting point : 2000°C
· Hardness : Mohs 9.0
Unhardened common steel SS
WA
White AluminumOxide
Crystal Form : a-Al2O3  ·True density : 3.96g/cm3
· Melting point : 2000°C  · 99% Al2O3
· Hardness : Mohs 9.0
· Hardened carbon steel
· Alloy steel ·Tool steel
 (SxxC, Scr, SK, SUH)
32A
SA
Single crystal ·True density : 3.96g/cm3 ·Hardness : Mohs 9.0
·Melting point : 2000°C · Particle shape : sharp
Including Cr.W stainles steel
· Tool steel(SUS, SKH, SUH)
C
GC
98% SiC ·Crystal Form : Hexagonal system
· True density : 3.20g/cm3 · Hardness : Mohs 9.0
· Melting point : 2300°C
· Ceramics polishing
· Plastic ·Rubber
· Non-ferrous metals
PA
RA
Pink AluminiumOxide
99.5% Al2O3, Crystal Form : a-Al2O3
· True density : 3.97g/cm3
· Melting point : 2000°C  · Hardness : Mohs 9.0
· Hardened carbon steel
· Alloy steel
· Tool steel
  (SxxC, Scr, SK, SUH)
Z
AZ
Zirconia Aluminium
Oxide
Crystal Form : Mono-Clinic
· True density : 3.97g/cm3
· Melting point : 1900°C
· 71% Al2O3 +25% ZrO2
· Alloy steel
· Stainless steel
· Cast iron
Grit
The size of abrasive grain is indicated in terms of the mesh(Screen size), coarser grains by low numbers and finer grains by high numbers. Coarse grits are in use for soft, ductile, stringy materials for fast stock removal rough grinding, large contact area, high grinding pressure. Finer grits in use for obtaining smooth finish, hard & brittle materials, small contact area and form holding of small & narrow corners.

Grit size of grinding wheels
Group
Grain size
Coarse grain
8 10 12 14 16 20 24
Normal grain
30 36 46 54 60 70
Fine grain
80 90 100 120 150 180 220
Very fine grain
240 280 320 400 500 600 700 800 1000 1200 2500

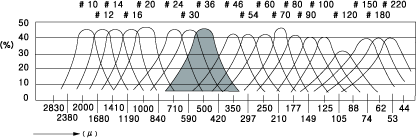

Grit distribution graph
