Grinding Wheel Marking	Standard Wheel Shapes

Grade

The relative holding power of the bond which holds abrasive grains within a wheel-degree of "hardness" of strength is indicated softer grades in low alphabet and harder grades in high alphabet.


Abrasive grains with light bond coating and weak connecting bond posts as in a relatively soft grade wheel. (Bright areas are the pores, required for chip clearance).	Abrasive grains of same size but with heavier bond coating and thicker, stronger bond posts as in a hard grade wheel.

Grade Table

Very sof	Soft	Medium	Hard	Very hard
A,B,C,D,E,F,G	H,I,J,K	L,M,N,O	P,Q,R,S	T,U,V,W,X,Y,Z

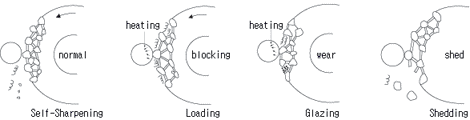

Normal Grinding and Abnormal Grinding

Structure

The relative grain spacing in a wheel. Dense spacing is denoted by low numbers and open spacing by high numbers. Wheel structures are depending upon the material to be ground, rate of stock removal, accuracy and surface finish required.

Structure Table

Structure Number	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14
Grain Percentage(%)	62	60	58	56	54	52	50	48	46	44	42	40	38	36	34
Short designation	Dense (D)						Medium (M)				Open (W)
