General Safety Guide Flanges |
| |

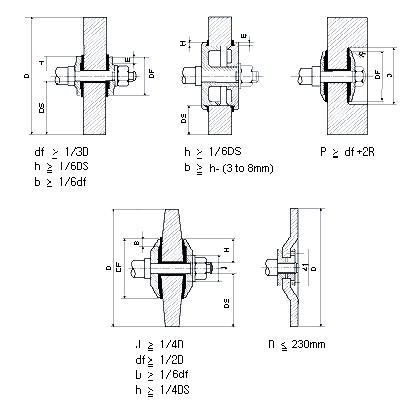

Grinding elements should be fastened safely. This should be done with fastening flanges as shown in the diagrams below.
|
| |
 |
|
PROTECTIVE GUARDS |
| |
| Grinding elements should be covered by wheel
guards on the grinding machine; These guards should be made of
a suitable material, depending on the type of machine and
use.

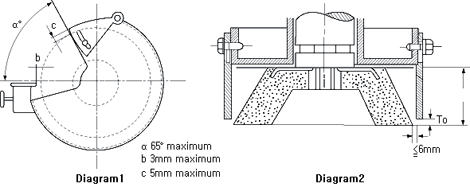

Diagram 1 Shows a wheel guard for a pedestal grinding machine(wheel stand);
The effect angle of aperture should not exceed 65°.
Diagram 2 Shows a wheel guard, adjustable along the axis, for a manual grinding
machine at the face of which the grinding element is applied. |
| |
 |
|
|
|
|
